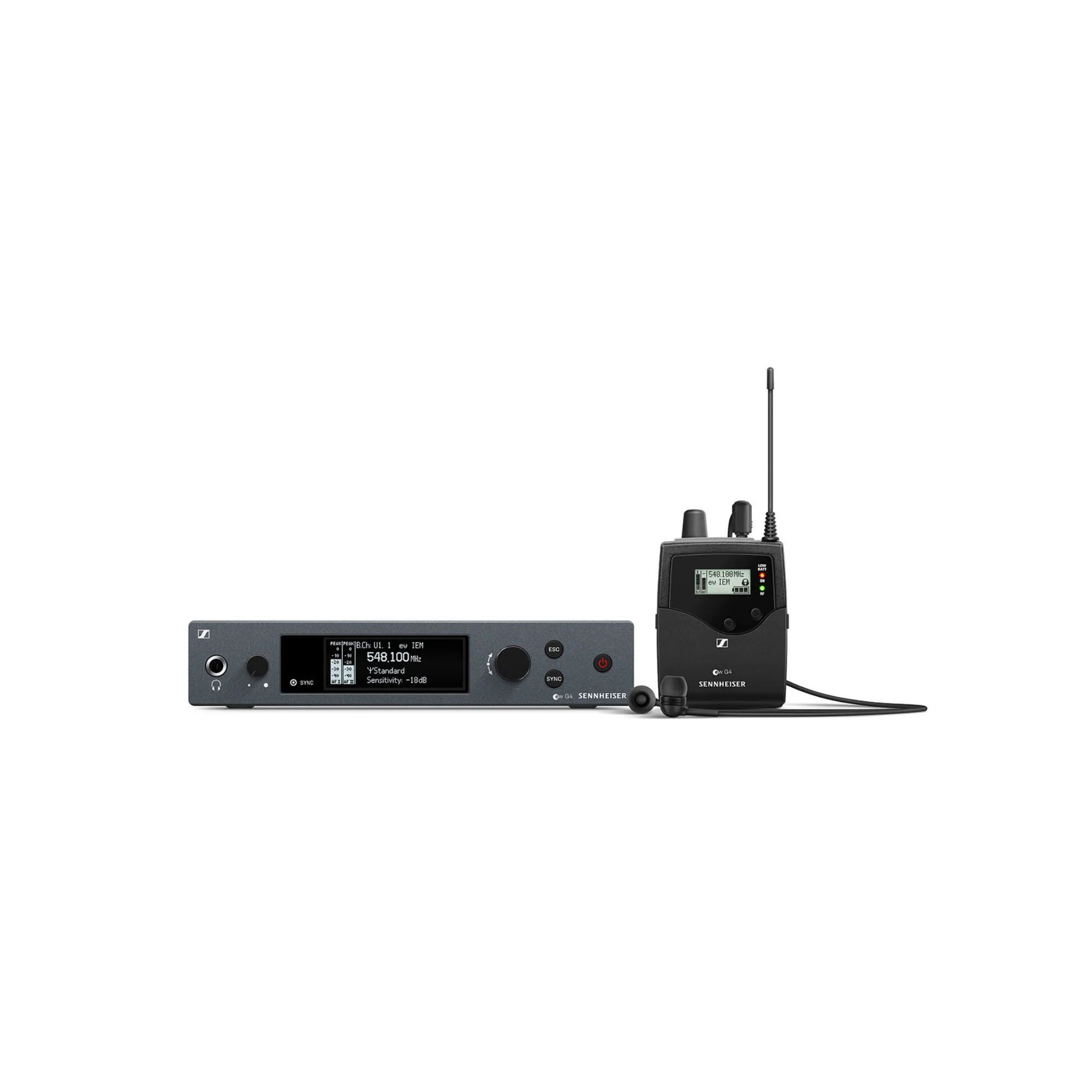

Sennheiser EW IEM G4 Wireless In-Ear Monitoring System
Sennheiser EW IEM G4 Wireless In-Ear Monitoring System
The Sennheiser EW IEM G4 is a professional-grade wireless in-ear monitoring system designed to deliver exceptional audio clarity and reliability for live performances. This all-in-one solution includes a robust SR IEM G4 stereo transmitter, an EK IEM G4 stereo diversity receiver, and a pair of high-quality IE 4 earphones, ensuring performers receive precise and consistent sound on stage. With a wide switching bandwidth of up to 42 MHz and 1,680 selectable frequencies, the EW IEM G4 offers flexibility and interference-free transmission across various environments. Its durable metal housing and user-friendly interface make it a dependable choice for touring professionals and live sound engineers.
Key Features:
- Wide Frequency Range: Up to 42 MHz bandwidth with 1,680 selectable frequencies, fully tunable in a stable UHF range.
- Enhanced Transmission Range: Operates up to 100 meters (300 feet), providing freedom of movement on stage.
- High RF Output Power: Up to 50 mW, depending on country regulations, ensuring reliable signal strength.
- Rugged Design: All-metal housing for both transmitter and receiver, built to withstand the rigors of live performances.
- Easy Synchronization: Flexible wireless synchronization between transmitter and receiver via infrared.
- Comprehensive Monitoring: Includes IE 4 earphones delivering clarity along the whole frequency spectrum for daily use on stage.
Specifications:
| Component | Specification |
|---|---|
| Frequency Ranges | A1: 470ā516 MHz; A: 516ā558 MHz; AS: 520ā558 MHz; G: 566ā608 MHz; GB: 606ā648 MHz; B: 626ā668 MHz; C: 734ā776 MHz; D: 780ā822 MHz; E: 823ā865 MHz |
| Transmitting Frequencies | Max. 1,680 frequencies, tunable in 25 kHz steps |
| Switching Bandwidth | Up to 42 MHz |
| Frequency Stability | ā¤ Ā±10 ppm |
| RF Output Power | Max. 50 mW |
| Audio Frequency Response | 25 Hz to 15 kHz |
| Signal-to-Noise Ratio | ā„ 90 dB(A) |
| Total Harmonic Distortion (THD) | ā¤ 0.9% |
| Operating Time | Up to 8 hours |
| Transmission Range | Up to 100 meters (300 feet) |
| Dimensions (SR IEM G4 Transmitter) | Approx. 202 x 212 x 43 mm |
| Weight (SR IEM G4 Transmitter) | Approx. 980 g |
| Dimensions (EK IEM G4 Receiver) | Approx. 82 x 64 x 24 mm |
| Weight (EK IEM G4 Receiver) | Approx. 125 g (without batteries) |
