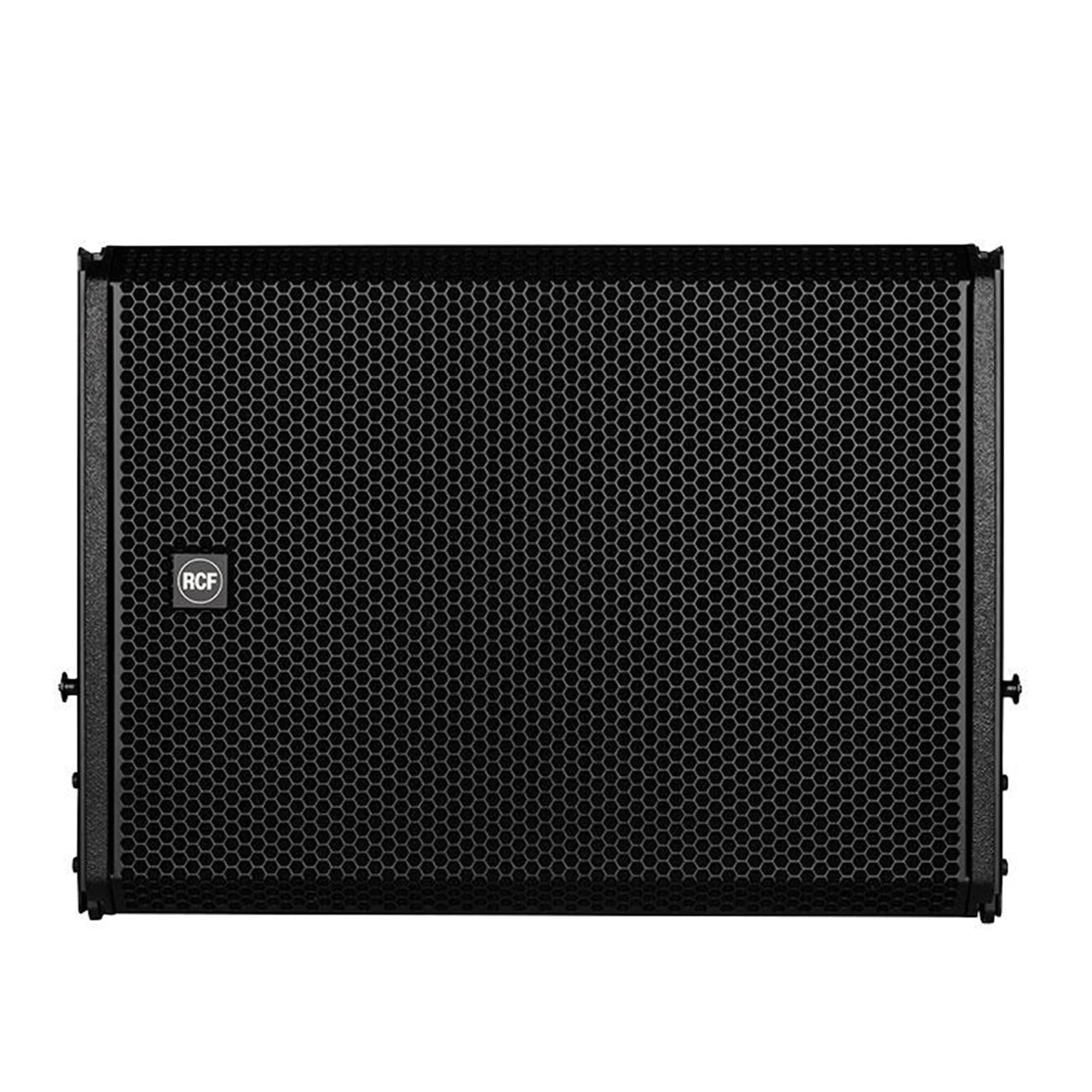

RCF hdl 38-as 100-240v active flyable subwoofer module

Product image 1

RCF hdl 38-as 100-240v active flyable subwoofer module

FEATURES
  • 136 dB Max SPL
  • 3200W peak class-D Amplifier
  • 30-140 Hz frequency response
  • RDNet Networked Management
  • 1x18” Neodymium Woofer, 4.0” voice coil

The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system. It features one 4.0” voice coil, 18” Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with the maximum linearity and low distortion. The HDL 38-AS is perfect to create flown systems for theatrical and indoor requirements. The built-in 3200W class-D amplifier delivers excellent playback clarity and up to 136 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 38-AS is part of the professional HDL System.

Frequency Response:
30 Hz ÷ 140 Hz
Max SPL @ 1m:
136 dB
Woofer:
18'' neo, 4.0'' v.c
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Preset selection
RDNet:
Yes
Total Power:
3200 W Peak, 1600 W RMS
Low frequencies:
3200 W Peak, 1600 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Array fittings
1 X M20
Handles:
2 Side
Grille:
Steel
Color:
Black, White - RAL 9003
Height:
502 mm / 19.76 inches
Width:
700 mm / 27.56 inches
Depth:
621 mm / 24.45 inches
Weight:
48.7 kg / 107.36 lbs
FEATURES
  • 136 dB Max SPL
  • 3200W peak class-D Amplifier
  • 30-140 Hz frequency response
  • RDNet Networked Management
  • 1x18” Neodymium Woofer, 4.0” voice coil

The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system. It features one 4.0” voice coil, 18” Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with the maximum linearity and low distortion. The HDL 38-AS is perfect to create flown systems for theatrical and indoor requirements. The built-in 3200W class-D amplifier delivers excellent playback clarity and up to 136 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 38-AS is part of the professional HDL System.

Frequency Response:
30 Hz ÷ 140 Hz
Max SPL @ 1m:
136 dB
Woofer:
18'' neo, 4.0'' v.c
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Preset selection
RDNet:
Yes
Total Power:
3200 W Peak, 1600 W RMS
Low frequencies:
3200 W Peak, 1600 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Array fittings
1 X M20
Handles:
2 Side
Grille:
Steel
Color:
Black, White - RAL 9003
Height:
502 mm / 19.76 inches
Width:
700 mm / 27.56 inches
Depth:
621 mm / 24.45 inches
Weight:
48.7 kg / 107.36 lbs
$3,287.28

Original: $9,392.24

-65%
RCF hdl 38-as 100-240v active flyable subwoofer module—

$9,392.24

$3,287.28

Description

FEATURES
  • 136 dB Max SPL
  • 3200W peak class-D Amplifier
  • 30-140 Hz frequency response
  • RDNet Networked Management
  • 1x18” Neodymium Woofer, 4.0” voice coil

The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system. It features one 4.0” voice coil, 18” Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with the maximum linearity and low distortion. The HDL 38-AS is perfect to create flown systems for theatrical and indoor requirements. The built-in 3200W class-D amplifier delivers excellent playback clarity and up to 136 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 38-AS is part of the professional HDL System.

Frequency Response:
30 Hz ÷ 140 Hz
Max SPL @ 1m:
136 dB
Woofer:
18'' neo, 4.0'' v.c
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Preset selection
RDNet:
Yes
Total Power:
3200 W Peak, 1600 W RMS
Low frequencies:
3200 W Peak, 1600 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Array fittings
1 X M20
Handles:
2 Side
Grille:
Steel
Color:
Black, White - RAL 9003
Height:
502 mm / 19.76 inches
Width:
700 mm / 27.56 inches
Depth:
621 mm / 24.45 inches
Weight:
48.7 kg / 107.36 lbs
