RCF hdl 35-as w 90-240v active flyable subwoofer module

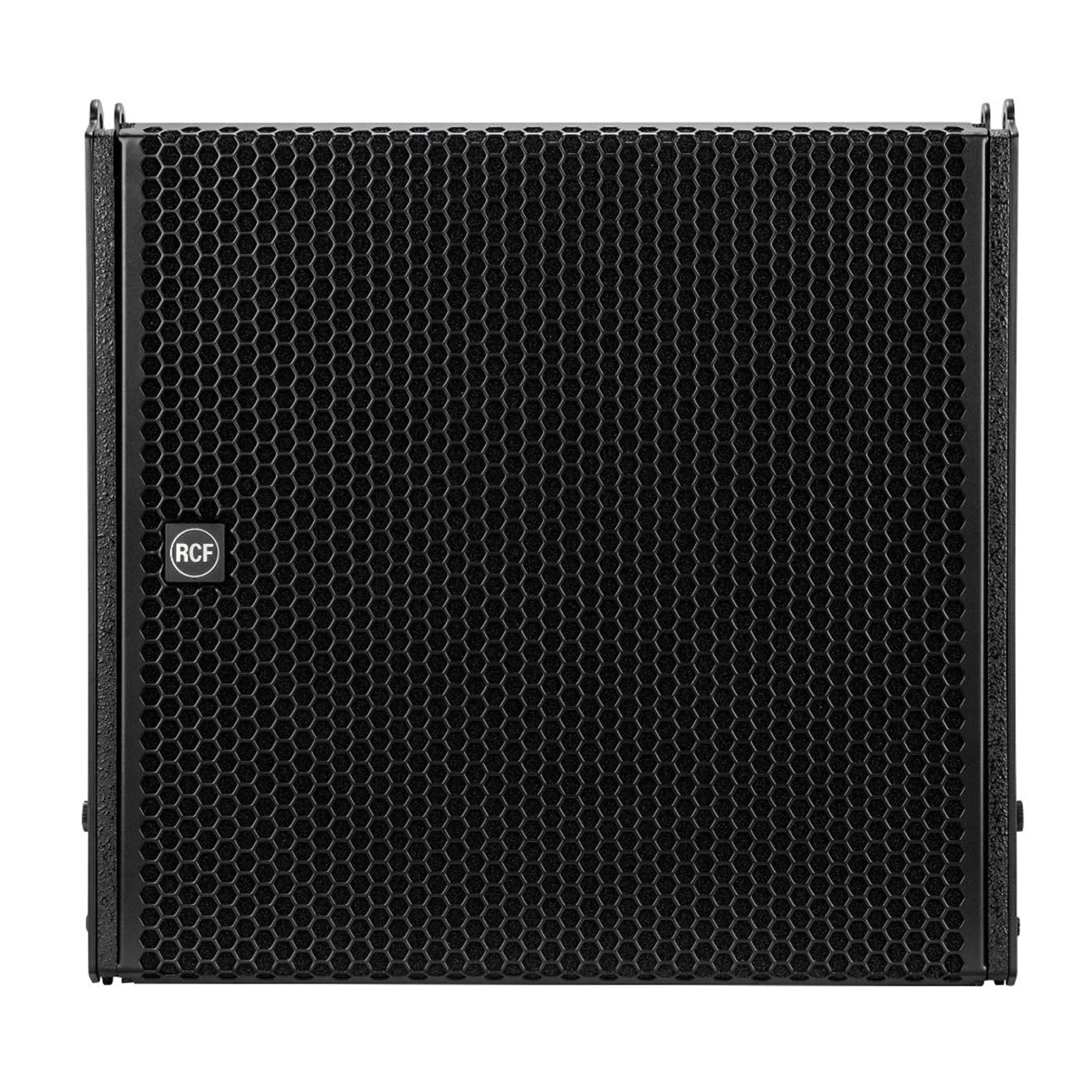

Product image 1

RCF hdl 35-as w 90-240v active flyable subwoofer module

FEATURES
  • 134 dB Max SPL
  • 2200W Class-D Amplifier
  • 40-140 Hz frequency response
  • RDNet Networked Management
  • 1x15โ€ Neodymium Woofer, 4.0โ€ voice coil

The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system. It features a baltic birch plywood cabinet housing one 4.0โ€ voice coil, 15โ€ Neodymium woofer to handle frequencies from 40 Hz to 140 Hz with the maximum linearity and lowest distortion. The 2200 Watts class-D amplifier onboard delivers excellent playback clarity and up to 134 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 35-AS is part of the professional HDL System.

Frequency Response:
40 Hz รท 140 Hz
Max SPL @ 1m:
134 dB
Woofer:
15'' neo, 4.0'' v.c
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Preset selection, RDnet on board
RDNet:
Yes
Total Power:
2200 W Peak, 1100 W RMS
Low frequencies:
2200 W Peak, 1100 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Array fittings
1 X M20
Handles:
2 Side
Grille:
Steel
Color:
Black, White
Height:
444 mm / 17.48 inches
Width:
456 mm / 17.95 inches
Depth:
508 mm / 20 inches
Weight:
30 kg / 66.14 lbs
FEATURES
  • 134 dB Max SPL
  • 2200W Class-D Amplifier
  • 40-140 Hz frequency response
  • RDNet Networked Management
  • 1x15โ€ Neodymium Woofer, 4.0โ€ voice coil

The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system. It features a baltic birch plywood cabinet housing one 4.0โ€ voice coil, 15โ€ Neodymium woofer to handle frequencies from 40 Hz to 140 Hz with the maximum linearity and lowest distortion. The 2200 Watts class-D amplifier onboard delivers excellent playback clarity and up to 134 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 35-AS is part of the professional HDL System.

Frequency Response:
40 Hz รท 140 Hz
Max SPL @ 1m:
134 dB
Woofer:
15'' neo, 4.0'' v.c
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Preset selection, RDnet on board
RDNet:
Yes
Total Power:
2200 W Peak, 1100 W RMS
Low frequencies:
2200 W Peak, 1100 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Array fittings
1 X M20
Handles:
2 Side
Grille:
Steel
Color:
Black, White
Height:
444 mm / 17.48 inches
Width:
456 mm / 17.95 inches
Depth:
508 mm / 20 inches
Weight:
30 kg / 66.14 lbs
$2,536.39

Original: $7,246.83

-65%
RCF hdl 35-as w 90-240v active flyable subwoofer moduleโ€”

$7,246.83

$2,536.39
